上颌窦咬骨钳 maxillary sinus bone rongeur

友情提示： 为达到产品样式最佳展现效果请切换电脑浏览器或手机横平浏览！

常规

	0°/反向咬切 0°/Reverse bite cutting	B-019-XG	-D1 -Z1 -X1

	15°/反向咬切 15°/Reverse bite cutting	B-020-XG	-D1 -Z1 -X1

● 80°张开角度占用前方空间更小
● The opening angle of 80 degrees occupies less space in front.
● 倒钩结构防止被切除物滑脱
● Barbed structure to prevent slippage of excised object
● 实现切除物体自然脱落的特殊技术
● Special Techniques for Natural Shedding of Excised Objects
● 高强度材料实现杆部更纤细，视野更开阔
● High-strength material to achieve finer rod and wider field of vision
● PVD镀膜使耐腐蚀性、耐磨损性得到了极大改善
● The corrosion resistance and wear resistance of PVD coating have been greatly improved.

产品参数 Product parameters

上颌窦咬骨钳【反向切钳】maxillary sinus bone rongeur
型号 Model			规格 Specifications		头部 head			总长 Total length
					L	W	H
KRT-B-019	-XG	-D1	0°	常规	7.5mm	4.1mm	4.1mm	140mm
		-Z1		常规		3.8mm	3.8mm
		-X1		常规		3.5mm	3.5mm
KRT-B-020	-XG	-D1	下斜15°	常规	7.5mm	4.1mm	4.1mm
		-Z1		常规		3.8mm	3.8mm
		-X1		常规		3.5mm	3.5mm

旋转 rotation

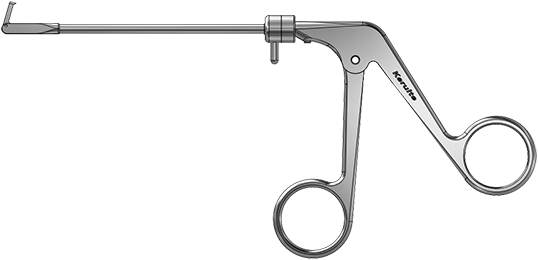

	0°/反向咬切 0°/Reverse bite cutting	B-019-XG	-D2 -Z2 -X2

	15°/反向咬切 15°/Reverse bite cutting	B-020-XG	-D2 -Z2 -X2

● 80°张开角度占用前方空间更小
● The opening angle of 80 degrees occupies less space in front.
● 倒钩结构防止被切除物滑脱
● Barbed structure to prevent slippage of excised object
● 实现切除物体自然脱落的特殊技术
● Special Techniques for Natural Shedding of Excised Objects
● 高强度材料实现杆部更纤细，视野更开阔
● High-strength material to achieve finer rod and wider field of vision
● 360°旋转满足更多操作角度
● 360 Degree Rotation Satisfies More Operative Angles
● PVD镀膜使耐腐蚀性、耐磨损性得到了极大改善
● The corrosion resistance and wear resistance of PVD coating have been greatly improved.

产品参数 Product parameters

上颌窦咬骨钳【反向切钳】maxillary sinus bone rongeur

型号
Model

规格
Specifications

头部 head

总长
Total length

KRT-B-019

-XG

-D2

旋转

0°

7.5mm

4.1mm

140mm

-Z2

3.8mm

-X2

3.5mm

KRT-B-020

-XG

-D2

15°

7.5mm

4.1mm

-Z2

3.8mm

-X2

3.5mm
